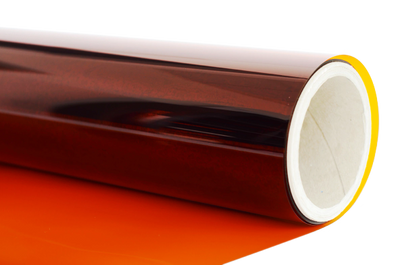

UV- Protection Yellow Film
The UV-protective Yellow Film was developed for use in UV photo-sensitive applications and blocks radiation below 520 nm wavelength.
The Film consists of yellow-dyed cellulose triacetate. The UV blocking filter is widely used in the photolithography, PCB & microelectronics manufacturing, printing plates & photoresists.
SELF-ADHESIVE UV-PROTECTION YELLOW FOIL
Lithoprotect® YSA520 - Self Adhesive
Features:
- Blocks reliable light wavelengths below 520 nm (see diagram on the next page)
- High heat resistance
- Outstanding optical purity
- High tensile strength
- Long-term UV-stable
- High inherent scratch resistance
- Also available as non-adhesive foil
Technical Data:
- Thickness: 117 μm
- Width: 1.15m
- Roll Length: 1m, 5m, 10m and 20m
- Density: 152.1 g/m²
- Tensile strength: > 120 MPa
- Melting range: 235 °C to 270 °C
NON-ADHESIVE UV-PROTECTION YELLOW FOIL
Lithoprotect® Y520 - Non Adhesive
Features:
- Blocks reliable light wavelengths below 520 nm (see diagram on the next page)
- High heat resistance
- Outstanding optical purity
- High tensile strength
- Long-term UV-stable
- High inherent scratch resistance
- Also available as self-adhesive foil
Technical Data:
- Thickness: 117 μm
- Width: 1.15m
- Roll Length: 1m, 5m, 10m and 20m
- Density: 152.1 g/m²
- Tensile strength: > 120 MPa
- Melting range: 235 °C to 270 °C
